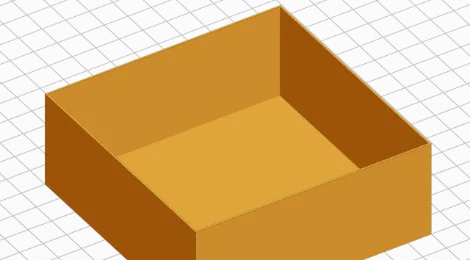

Hollow Box Container - 3D CAD Model

FlowCad is the fast, free, and precise web app for 3D design and printing. Build professional parametric models with ease-no programming required, but it's there if you need it.

Open in FlowCad

3D Model Components

Hollow Container script — Position: [0.0, 0.0, 10.0]

Blueprint Script (TypeScript)

const PARAMS = {
    dim: 'disabled',
    size: {
        x: 50,
        y: 50,
        z: 20,
    },
    wall: {
        value: 2,
        min: 0.1,
    },
    bottomClosed: true,
}

let { size, dim, wall } = PARAMS

let result: Manifold

const outer = Manifold.cube([size.x, size.y, size.z], true)
let inner = Manifold.cube([size.x - wall.value * 2, size.y - wall.value * 2, size.z], true)
if (PARAMS.bottomClosed) {
    inner = inner.translate([0, 0, wall.value])
}
result = outer.subtract(inner)

return { result, PARAMS }
